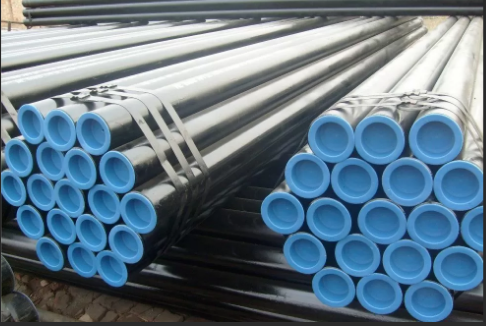

API 5L Line Pipe

API 5L Line Pipe

Product Introduction :

Carbon Seamless steel pipe is used to transport fluid , such as the transportation of oil , natural , gas water and some solid material , such as pipe . And also can be used for various services such as onshore , offshore , shallow water and deep water , non-sour and services . The use of carbon seamless steel pipe manufacturing ring parts and improve material utilization , simplify the manufacturing process save materials and processing time , such as rolling bearing rings , jackets, etc . has been widely used to manufacture steel pipe .

Application: For Pipeline Transportation in petroleum and natural gas industries

Size：2” -64”(60.3mm-1620mm)

Standard : APL 5L PSL1 , API 5L PSL2 , ASTM A106 , ASTM A179 , ASTM A192 , DIN1629

Grades : Grade A, B, C, X42 , X52 , X56 , X60 , X70 , X80 ; A192; ST37 , ST44 , ST52 , etc

Outside Diameters : O.D from 1/4’’ to 28’’ , 60.3mm to 660.4mm

Wall Thickness : W/T from 2.0mm to 160.0mm

Length : SRL , DRL , Special length from customer is acceptable .

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled /Threaded Ends

Coating : Black coating , oil/varnish , FBE , 2PE , 3PE , galvanized etc .

Packing : Bundle or bulk , seaworthy packing

Inspection : Phisical and chemical test lab , surface inspection , hydraulic testing , ultrasonic test , eddy current test , magnetic test , hardness test , charby impact test , HIC SSC test certificate from cooperated lab . Any third party inspection is acceptable .

Dimensional tolerance

Steel pipe type	Outer diameter of steel pipe(D)	Steel pipe wall thickness(S)
Pipe body	Steel pipe OD (mm)	Allowable deviation(mm)	Steel pipe OD (mm)	Allowable deviation(mm)
≥ 60.3 & S<20	±0.75%	≤ 73.0	+15%，-12.5%
≥ 60.3 & S≥20	±1.00%	>73.0 & S<20	+15%，-12.5%
		>73.0 & S≥20	+17.5%，-10

Mechanical Property

Standard	grade	tensile strength (MPa)	yield strength (MPa)	Yield strength ratio	Elongation (%)	0°C Impact energy Akv（J）	Heat treatment status
API SPEC 5L GB/T9711.2	B	≥415	245~440	≤0.80	22	≥40	normalizing
X42	≥415	290~440	≤0.80	21	≥40	normalizing
X52	≥460	360~510	≤0.85	20	≥40	normalizing
X60	≥520	415~565	≤0.85	18	≥40	normalizing
X65	≥535	450~570	≤0.90	18	≥40	Quenching + tempering
X70	≥570	485~605	≤0.90	18	≥40	Quenching + tempering

Chemical Composition

Standard	grade	Chemical Composition（%）CEV（%）
C	Si	Mn	P	S	V	Nb	Ti
API SPEC 5L GB/T9711.2	B	≤0.16	≤0.40	≤1.10	≤0.020	0.010	——	——	≤0.42
X42	≤0.17	≤0.40	≤1.20	≤0.020	≤0.010	≤0.05	≤0.05	≤0.04	≤0.42
X52	≤0.20	≤0.45	≤1.60	≤0.020	≤0.010	≤0.10	≤0.05	≤0.04	≤0.45
X60	≤0.21	≤0.45	≤1.60	≤0.020	≤0.010	≤0.15	≤0.05	≤0.04	协议
X65	≤0.16	≤0.45	≤1.60	≤0.020	≤0.010	≤0.06	≤0.05	≤0.06	≤0.45
X70	≤0.16	≤0.45	≤1.70	≤0.020	≤0.010	≤0.06	≤0.05	≤0.08	≤0.45

Note: 1. 0.015%≤Altot<0.06%; N≤0.012%; AI/N≥2/1; Cu≤0.25%; Ni≤0.30%; Cr≤0.30%; Mo≤0.10%

V+Nb+Ti≤0.15
X60, X65, X70, Mo≤0.35%
